Conductor Types and Specifications
Conductors ACSR - Aluminium Conductor Steel Reinforced
Aluminium conductor steel-reinforced cable (ACSR) is a type of high-capacity, high-strength stranded conductor typically used in overhead power lines.

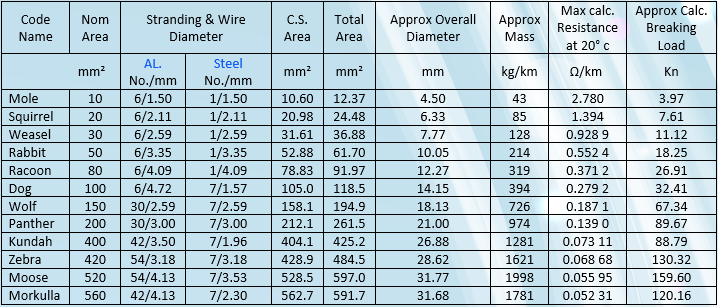

ACSR -Aluminium Conductor Steel Reinforced Construction AS PER IS-398 PART-2
ACSR- Aluminium Conductor Steel Reinforced (ACSR) FOR EXTRA HIGH VOLTAGE ABOVE 400 KV. AS PER IS-398 PART-5
Conductor Types and Specifications
AAAC conductors are generally made out of aluminium alloy 6201 (Minimum Conductivity is 54%). AAAC Conductor has a better corrosion resistance and better strength to weight ratio and improved electrical conductivity than ACSR Conductor on equal diameter basis.

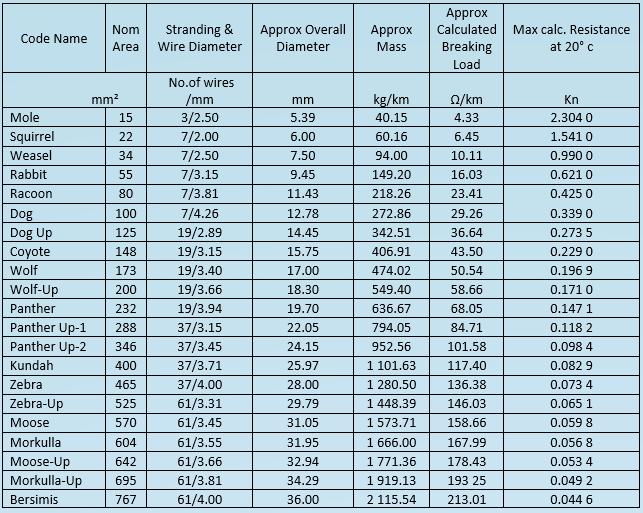

AAAC All Aluminium Alloy Conductors AS PER IS-398 PART-4
CABLES LT-ABC- (LT Aerial Bunched Cables)
Aerial Bunched Cables (ABC) is a very novel concept for Over Head Power distribution. When compared to the conventional bare conductor over head distribution system. ABC provides higher safety and reliability, lower power losses and ultimate system economy by reducing installation, maintenance and operative cost.
Aerial Bunched Cables are suitable for the following functions.
In power theft prone areas.
As replacement of bare lines where reliability of supply is of prime importance and where high degree of stability of supply voltage is of importance.
In hilly terrains where cost of erection of overhead lines of underground cable becomes very high.
As reinforcement of existing system without increasing voltage.

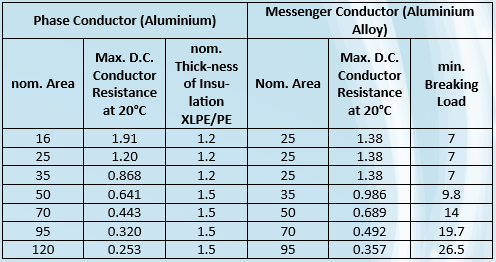

CABLES LT-ABC -LT Aerial Bunched Cables AS PER IS-14255-1995
Technical Particulars
